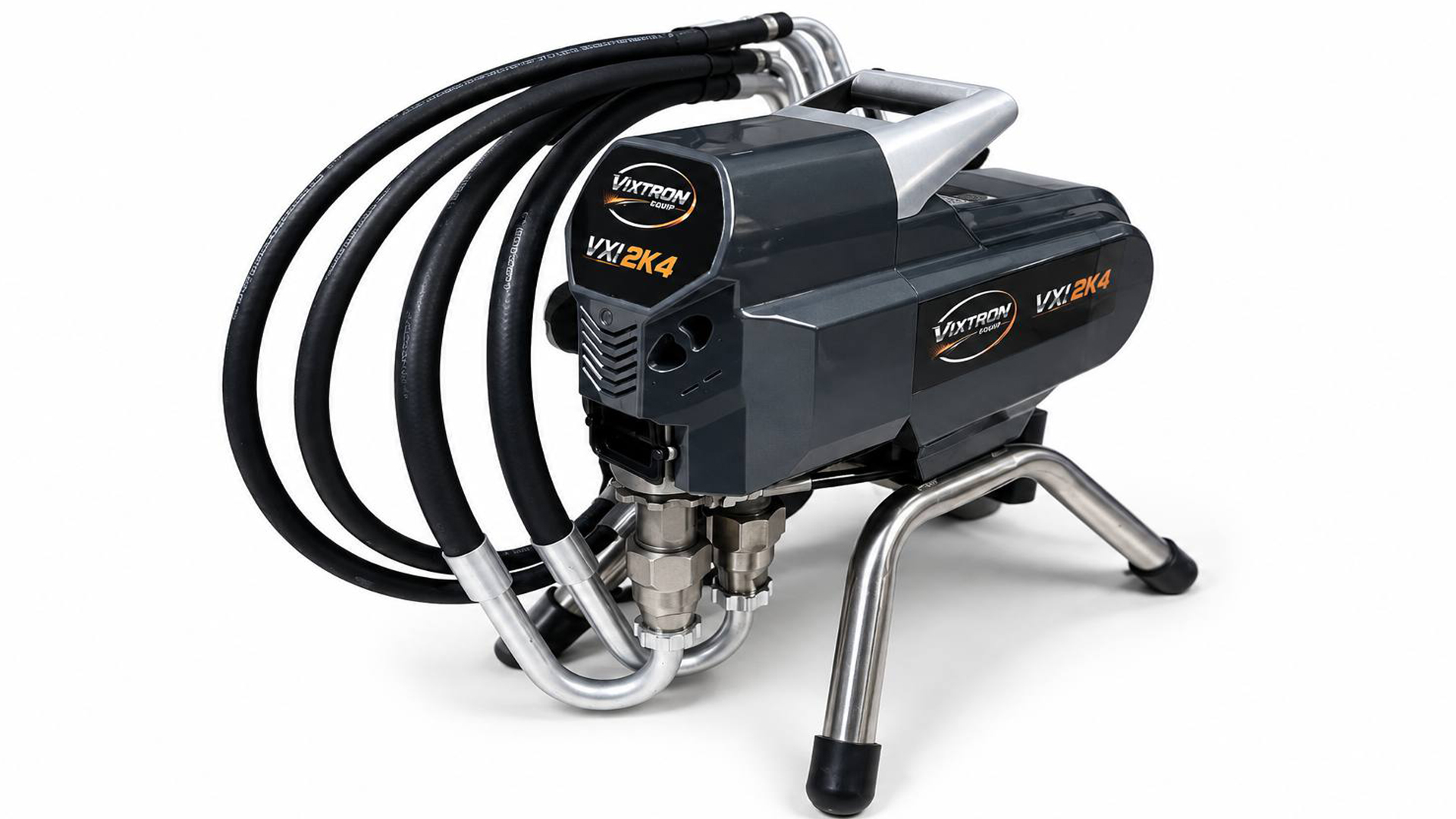

VXI 2K4 COMPACT Portable Two-Component Spray & Injection System
VIXTRONequip VXI 2K4 COMPACT
Portable Two-Component Spray & Injection System
Compact Design – Professional Performance
The VTX2K COMPACT is a portable two-component airless spray and injection machine designed for waterproofing, crack injection, protective coatings, and specialty resin applications. Its compact design allows easy transportation and operation while maintaining precise 1:1 material mixing and professional spraying performance.
Key Features
✔ Precise 1:1 material mixing ratio
✔ Real-time pressure monitoring
✔ Dual sensor safety protection
✔ Long-life brushless DC motor
✔ Compact and lightweight design
✔ Aviation-grade aluminum manifold
✔ Chrome steel piston rods
✔ Tungsten carbide valves
✔ Triple-layer chemical-resistant hoses
✔ Heavy-duty stainless steel frame
Technical Specifications
|
Item |
Specification |
|
Model |
VXI 2K4 |
|
Max Flow Rate |
4.0 L/min (2.0 + 2.0 L/min) |
|
Max Working Pressure |
230 bar (3336 psi) |
|
Max Tip Size (1 Gun) |
0.027" |
|
Max Tip Size (2 Guns) |
0.023" |
|
Motor Type |
Brushless DC Motor |
|
Motor Power |
2200 W (3.0 HP) |
|
Voltage |
220 V |
|
Frequency |
50 / 60 Hz |
|
Mixing Ratio |
1:1 |
|
Application |
Spray & Injection |
Suitable Materials
- Polyurea
- Polyurethane Resins
- Epoxy Systems
- Waterproofing Materials
- Acrylic Gels
- Injection Resins
- Protective Coatings
- Crack Repair Materials
